Prevent firing issues and ensure accurate temperature readings by following these essential tips for thermocouple maintenance and placement.
Thermocouples are critical components of your kiln, responsible for measuring the temperature inside the chamber. Accurate readings are essential for achieving consistent firing results, but thermocouples can sometimes give incorrect readings or cause errors. These issues can lead to uneven firings, damaged projects, or even complete firing failures. Proper maintenance and placement are key to avoiding these problems.
The placement of your thermocouple is crucial for accurate readings. Follow these guidelines:

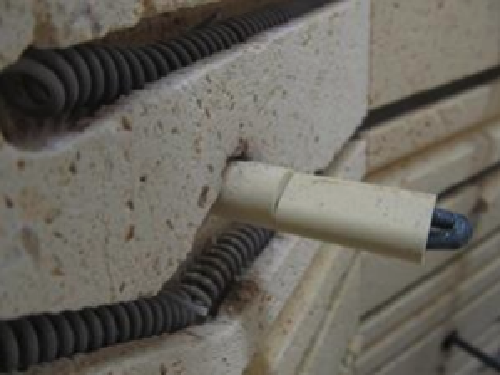

• Ensure the tip of the thermocouple extends approximately 1.5 inches into the kiln chamber.
• For single thermocouple kilns, place the thermocouple centrally in the chamber, rather than near the top or bottom.
• Make sure the hole through the kiln wall and thermocouple is a snug fit. Fill any gaps with high-temperature insulation to prevent heat loss.
Thermocouples are one of the most frequently replaced parts in a kiln. Regular maintenance can help prevent errors:
• Replace thermocouples regularly if you perform a large number of firings.
• Look for signs of wear and tear, such as bent, cracked, or discolored thermocouples, and replace them as needed.
• Use witness cones occasionally to verify the accuracy of your thermocouple readings.
When installing a new thermocouple, ensure there are no offsets set on the controller. A properly installed thermocouple should not require any offset adjustments.
When replacing a thermocouple, ensure the leads are properly connected to the controller board:
• Check for reversed leads, as this can cause errors like E-6, E-22, or E-26.
• Verify that the thermocouple wire matches the type of thermocouple being used (e.g., Type K or Type S). Mismatched settings can result in errors like E-9.
Thermocouple errors can often lead to FAIL or TC FAIL messages on your kiln controller. If you encounter these errors, it’s important to determine whether the issue lies with the thermocouple or the controller. Learn how to perform a Thermocouple Bypass Test and resolve FAIL messages in our FAIL Message Troubleshooting Guide.
